Service Station Tanks
Jacketed Fuel Tank
The Jacketed Tank is composed of two walls, one made of ASTM A-36 carbon steel and the other made of laminated (thermoset) fiberglass. Between them there is an interstitial space for the installation of an electronic monitoring sensor, guaranteeing the quality of fuel storage and preserving the environment.

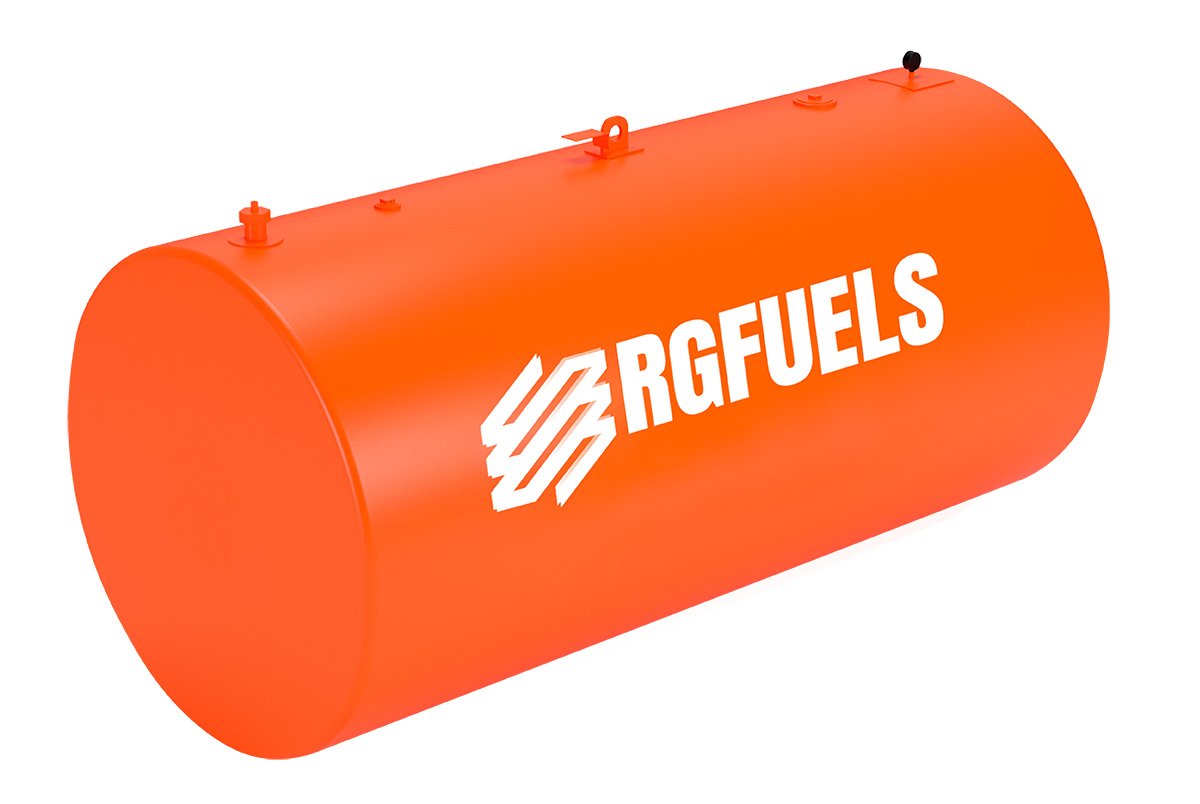

Jacketed Fuel for ARLA / ADBLUE
The Jacketed Tank for ARLA / ADBLUE (Automotive Liquid NOx Reducing Agent) is manufactured in ASTM AISI 304 stainless steel and is intended to store and protect ARLA 32 from the incidence of sunlight and extreme temperatures (high or low). The tank allows the installation of an electronic monitoring sensor, guaranteeing storage quality.
Jacketed Tank for used oil
The Jacketed Tank is composed of two walls, one made of carbon steel and the other made of laminated fiberglass (thermoset). The tanks guarantee safe storage of used lubricant in service stations or workshops.
MANUFACTURING STANDARD – NBR 16161
REFERENCE STANDARD – UL 58 | UL 1746 | UL 1316 | NBR 16161
Jacketed PetroFirst Tank
RG FUELS Petro-First is a revolutionary pre-engineered, pre-fabricated design. Featuring factory welded internal fuel piping and canopy foundation connections. Petro-First is ready to expedite on-site placement wherever the demand for retail gasoline exists. Designed in double wall steel, fiberglass jacketed. Tested, listed to certify compliance with Underwriters Laboratories (UL) #58 and #1746 standards.
Jacketed Fuel Tank
Differentials
- Thermoset resin with the best quality index on the market
- It has a manhole with removable screws, which makes it possible to change without having to inert the tank to carry out welding processes.
- Manhole with 4, 5 or 6 2″ inlets (according to the client’s needs)
- Protective caps to prevent damage during transport
- Proprietary technology for ring cylindering and tank assembly
Equipment Component
- Metal tank
- Manway
- Interstitial Monitoring
- 2 (two) suction pipes if required
Suitable for storage
- Alcohol
- Diesel
- Gasoline
Jacketed Fuel for ARLA / ADBLUE
Differentials
- Stainless Steel Tank
- Removable screws
- Manhole with 4, 5 or 6 2″ inlets (according to the client’s needs)
- Protective caps to prevent damage during transport
- Easy handling and installation
Equipment Component
- Metal tank
- Manway
- Interstitial Monitoring
- 2 (two) suction pipes if required
Suitable for storage
- ARLA / ADBLUE
Jacketed Tank for used oil
Differentials
- Removable screws
- Manhole with 4, 5 or 6 2″ inlets (according to the client’s needs)
- Protective caps to prevent damage during transport
- Easy handling and installation
Equipment Component
- Metal tank
- Interstitial Monitoring
- External coating (jacket) in GRP – Fiberglass Reinforced Plastic
- Manway upon request
Suitable for storage
- Used oil

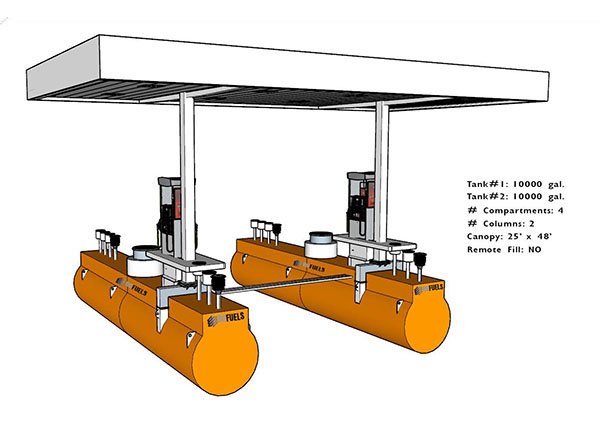

Jacketed PetroFirst Tank
The PetroFirst System Provides:
- Reduced project engineering and design development.
- Reduced on-site construction complexity, manpower and supervision.
- Reduced on-site construction time, cost and potential liabilities.
- Ultimate protection from environmental contamination.
- Virtually Leak-Proof because the pressurized product piping is contained within the tank.
- Underwriters Laboratory (UL) tested.
- Tank size and design flexibility to meet volume needs.
- Reduced property space required.
The pressure piping is factory welded and totally enclosed within the secondary contained, corrosive protected tank structure. Therefore, the pressurized fuel piping is never in contact with the earth’s soil. Virtually eliminates the liability of a contamination incident from this potential source. Making it much easier to receive environmental approvals from state, county and local governments.
Petrofirst Models
